Tanis Engine Preheat Kit - Pratt & Whitney (PWJT15D Series)

Turbine Engine Preheat Kit – P&W PWJT15D Series Turbofan Engines

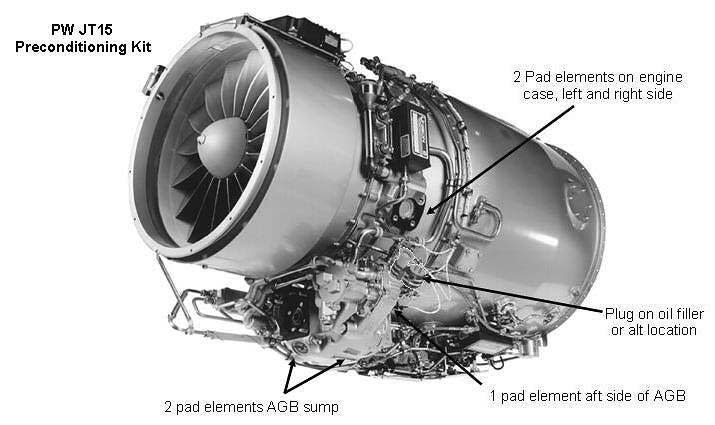

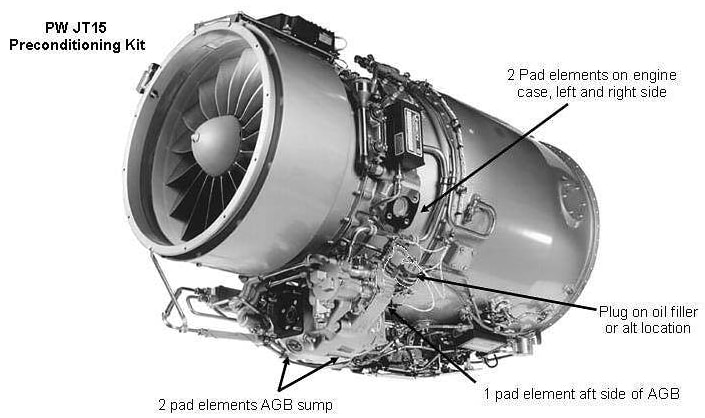

Engine preheating is accomplished through electrical resistance heat in the form of thin pads sized and shaped to fit various parts. The pads are surface mounted with a bonding adhesive. Heated items include, engine accessory/reduction gearboxes, fluids, and attached accessories. Power is routed to the heat elements through a dedicated wiring assembly with power indication and circuit overload protection. System is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

This preheat kit when installed will supply 290 watts with a 2.5 amp draw at 115 volts.
This preheat kit when installed will supply 290 watts with a 1.3 amp draw at 230 volts.

* Required Bonding sealant sold separately. Quantity 2, PN: TU02788

* AVF0001 form requested for verification of purchase.

Old part number: TAS300-20 or TAS300-20A
