Tanis Engine Preheat Kit - Jabiru 2200, 4 Cyl

Engine Preheat Kit for Jabiru 2200

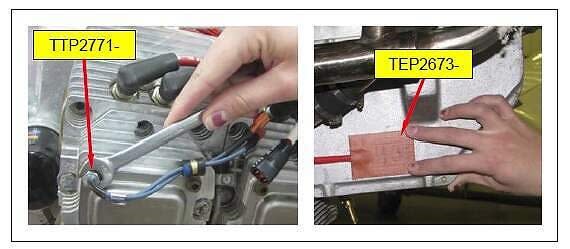

This preheat kit contains threaded electrical resistance heat elements located in each cylinder assembly, and one pad heat element on the engine crankcase/oil sump. This multipoint configuration fully preheats the engine and attached accessories. Power is routed to the elements through a dedicated wiring assembly with system power indication and circuit overload protection. The system is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

The preheat kit will supply 188 watts with a 1.6 amp draw at 115 volts.
The preheat kit will supply 188 watts with a 1.8 amp draw at 230 volts.

* Required Bonding sealant sold separately. Quantity 1, PN: TU02788

This kit is not eligible for an 8130-3.

* RTB0001 form required for purchase on certified engine installations.
