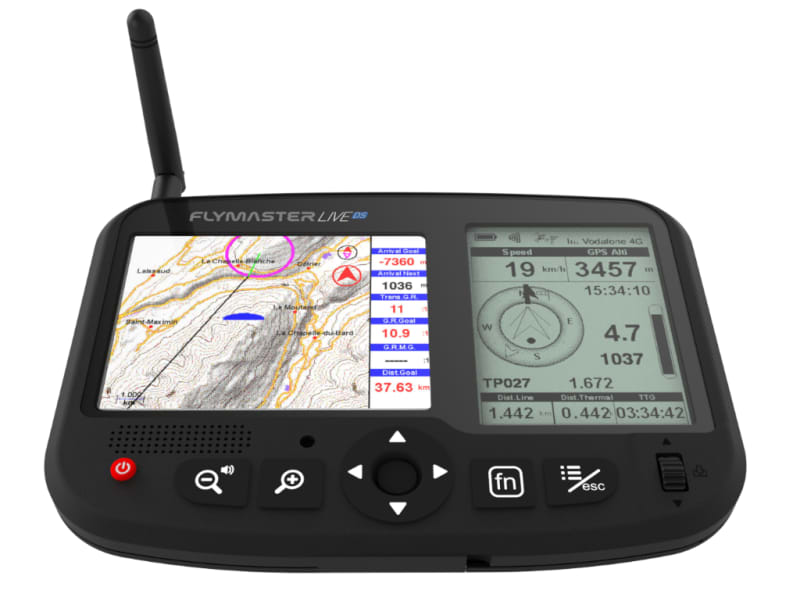

FlyMaster Live DS with FLARM

Variometer/Altimeter Features:

• Buzzer/near thermal sound
• Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
• Configurable vario digital filter and integration values
• Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….)
• Adjustable Sound Levels
• Automatic mute, keeps vario silent until takeoff
• Altitude adjustment using QNH
• Automatic altitude adjustment from GPS
• 2 independent altimeters

Memory Features:

• 3D flight logger IGC format

3D Airspace:

• The map offers an intuitive visualization of restricted areas, ensuring easy identification and awareness of prohibited zones.
• Adjustable voice warning of vertical distance to a restricted area
• Adjustable voice warning of horizontal distance to a restricted area
• Display of shortest vertical, and horizontal distance to restricted area
• Restricted area voice alarms (Altitude imminent, Position imminent, Violation, …)
• Critical Airspace page (displays information about areas that are closer than a defined distance)
• Airspaces browser
• Worldwide Airspace database

Maps:

• Detailed colored maps with topographic data
• With configurable layers

Cross Country Features:

• Exclusive Thermal Ball indicator
• Several specific data fields like distance to take off, current and average glide ratio, average speed, etc.
• Distance to last thermal indexed with altitude
• Goto waypoint
• Multiple waypoint route
• Wind Speed and Direction (GPS based calculations)
• Automatic altitude gain profiler
• Nearby Landings (displays required glide ratio and distance to all the landings which can be reached)

Competition Features:

• Route Optimization (indication for shortest route point)
• Speed to Start (optimal speed to make the start)
• Arriving altitude at next waypoint and goal (considering wind)
• Several Glide Ratios (to goal, average, to next,…)
• Easy task definition
• Task Navigation, configurable safety/risk margin on turn points.
• Task Map (trace with thermal indication)

Live Tracking:

• Flight data can be efficiently uploaded to various repositories, such as the Leonardo XC server, XContest, and DHV, utilizing the GSM network.
• Automatic almost real time flight data sending to a remote live tracking server through GSM network. (compatible with several servers like Flymaster, LiveTrack24, DHV, etc)
• On demand sending of predefined messages to a server (eg. Need Assistance, Need Retrieval, etc)
• Effortlessly receive data from a remote server, including alarm messages, task definitions, and more, through automated processes.
• Optimized LTE-M/GPRS data usage is minimal, with an average requirement of only 25KB per flight/hour, assuming uninterrupted communication.

Interfacing:

• Compatible with MacOS (10.13 and higher), Windows (7/8/10)
