Electronics International M-1 Manifold Pressure Instrument
Rebate effective from 09/01/2026 through 09/30/2026.
Click Here For Mail In Rebate Form!

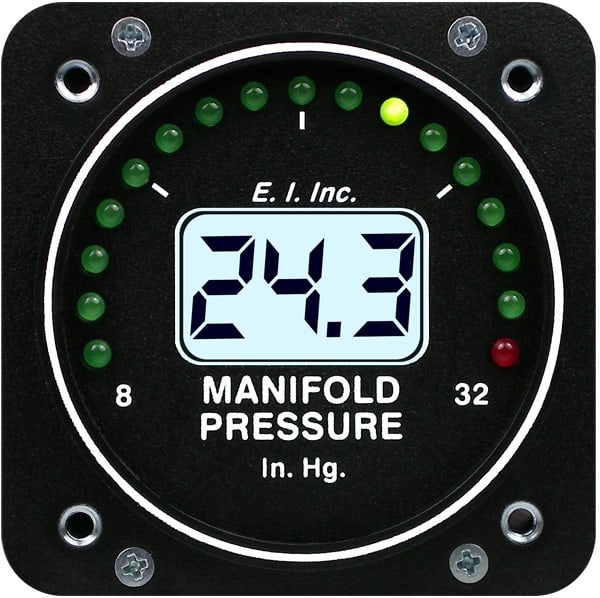

Electronics International M-1 offers pilots an accurate, stable digital Manifold Pressure for single tank configurations. (TSO’d and STC’d as Primary Replacement)
Displays precise Manifold Pressure in both Digital and Analog format. The LED Arc providesa quick reference of the Manifold Pressure operation.
INCLUDES: Instrument and Wire Harness.
SPECIFICATIONS: 2 1/4” Mount. 3.65” Depth. Viewable in direct and indirect sunlight.Backlit for night operation. Operates from 7.5 to 30 volts at .3 amps. Instruments may comewith labels on the faceplate rather than silkscreened to signify limit markings for your aircraft.
Optional A-102 Adapter to fill a 3 1/8” hole
Order MUST specify range markings.
Fill out the M-1 Manifold Configuration Worksheet and email to [email protected].
